電流互感器按照一定的比例感應出小電流供測量或檢測使用，也可以為繼電保護和自動裝置提供電源；

電流互感器由閉合的磁芯和繞組組成，初級串聯在大電流的線路中，次級串聯在儀表或保護電路中；

新能源汽車及充電樁使用電流互感器作為電流檢測保護，避免過充；

廣泛應用于電源、儲能、光伏、智能電表等領域。

Current transformers sense small currents in proportion to a specific ratio for measurement or detection purposes. They can also provide power supply for relay protection and automatic devices.

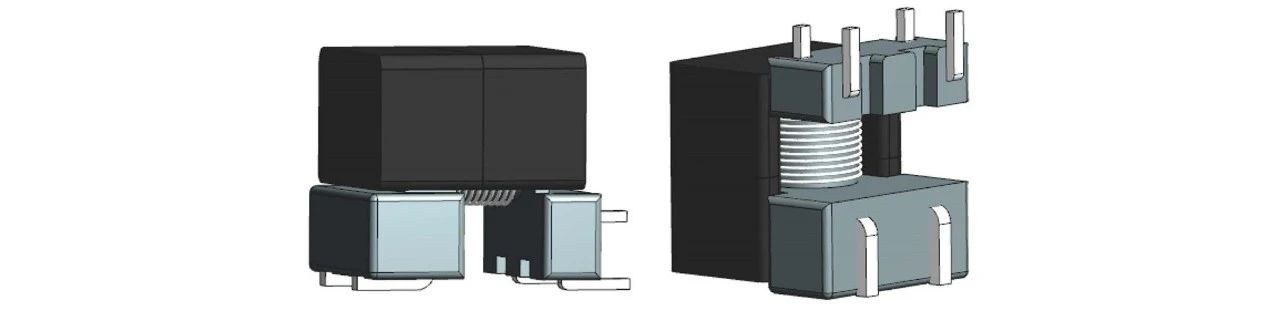

Current transformers consist of a closed magnetic core and windings. The primary winding is connected in series with the high-current line, while the secondary winding is connected in series with the meter or protection circuit.

Current transformers are used in new energy vehicles and charging stations to provide current detection and protection, thereby avoiding overcharging.

They are widely applied in various fields, including power supply, energy storage, photovoltaics, smart meters, and more.

1.采用磁屏蔽特性優良的材料和結構，低漏磁，磁場分布均勻，電流檢測精度高；

2. 應用頻率范圍10~1000kHz；

3. 采用模塊化設計，SMD結構；

4. 初級低電阻，檢測電流更高；次級低分布電容，產品性能優異；

5. 自動化繞線、組裝，產品一致性更高，可靠性更高；

1.It utilizes materials and structures with excellent magnetic shielding properties, resulting in low magnetic leakage and uniform magnetic field distribution. This ensures high accuracy in current detection.

2.It operates within a frequency range of 10 to 1000 kHz.

3.It adopts a modular design and Surface Mount Device (SMD) structure.

4.The primary winding has low resistance, allowing for higher current detection. The secondary winding has low distributed capacitance, resulting in excellent product performance.

5.The use of automated winding and assembly processes ensures higher product consistency and reliability. This automated approach to winding and assembly results in improved uniformity across the products and enhances their overall reliability.

Widely used in charging stations, power supplies, photovoltaics, energy storage, inverters, and smart meters.

Remark:
